TECHNICAL SPECIFICATIONS

• Carton drive belts: bottom and top
• Pneumatic inlet centring device
• Taping heads: Upper and lower

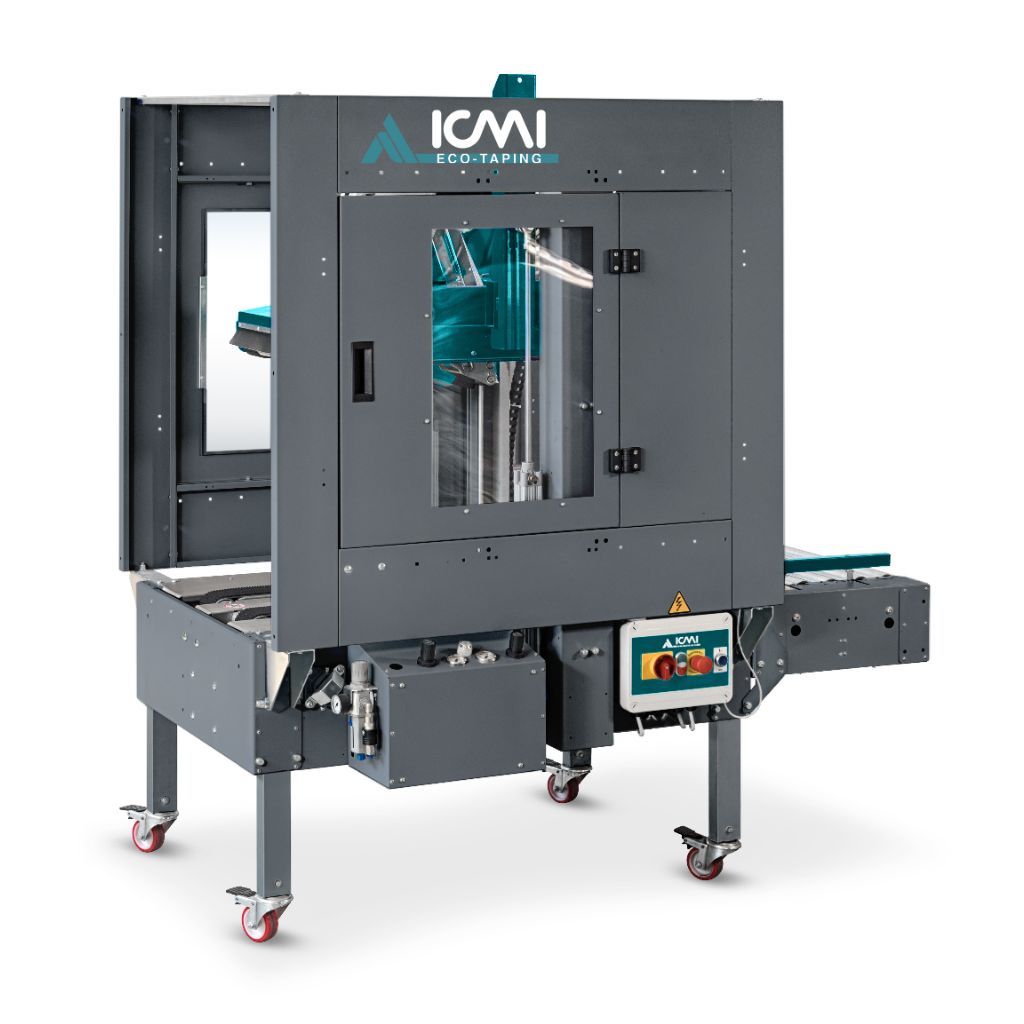

• Standard configuration: TAPE-R350 TBB T22, TAPE 360 TBB T33
• Tape width: from 38 to 50 mm according to the head (to be indicated when ordering)
• Tape tension: Adjustable
• Max. tape reel diameter: 360 mm
• Internal reel diameter: 76 mm
• Power supply: 380 V three-phase – 50/60 Hertz
• Installed power: 0.25 kW
• Electrical protection: IP 54
• Working temperature: + 5° C – max. +35° C
• Belt speed: 22 m/min
• Production output: 600 cartons/h
• Pneumatic working pressure: 6 bar
• Air consumption per cycle: 7.5 nl
• Worktable height: 650 mm
• Weight: TAPE-R350 TBB 240 Kg, TAPE-R360 TBB 275 Kg
• Machine dimensions (L x W x H) 1635 x 994 x 1782 mm
• Sheet metal side guards with CE-compliant access door, top cover
• Lower drive belt guards
