TAPE_320_BB

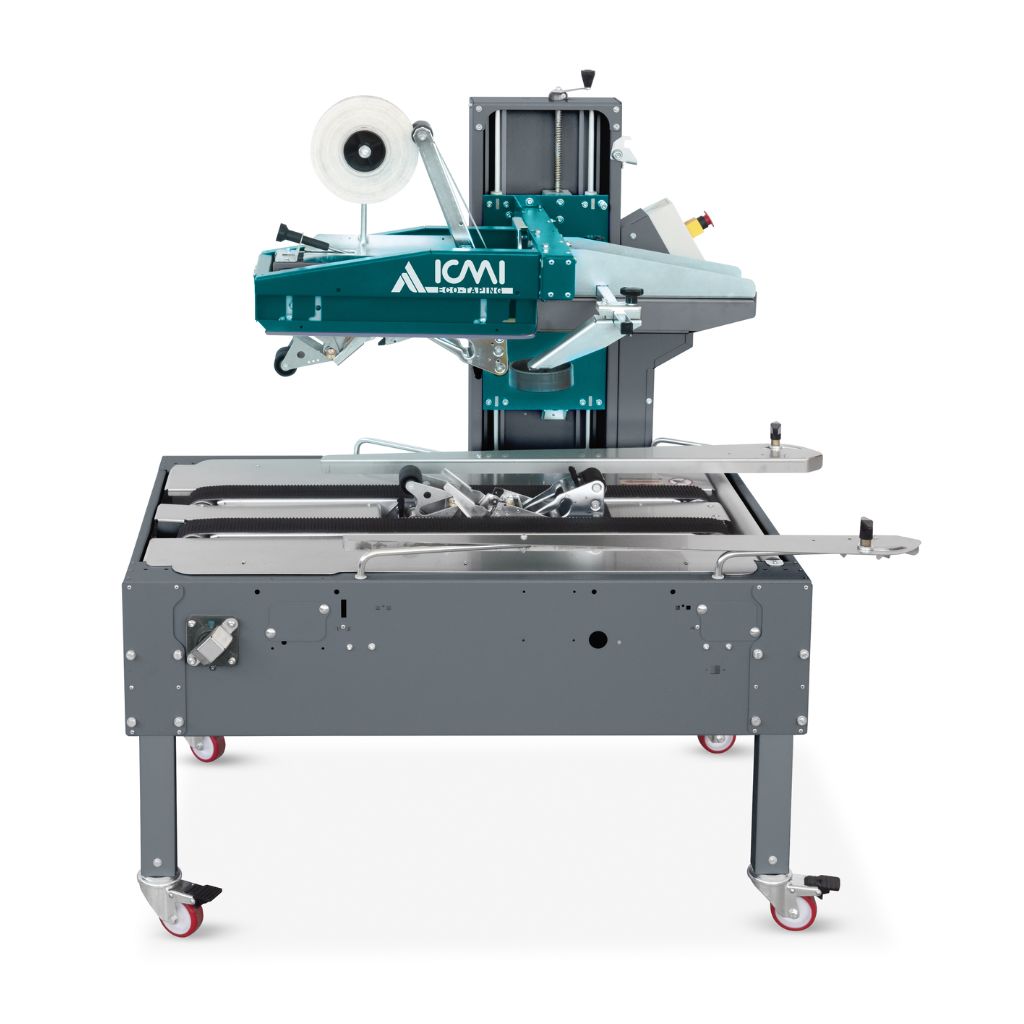

TAPE-320 BB

LOWER AND UPPER BOX TAPE

TAPE-320 BB

TECHNICAL FEATURES

  • Drive belts: Lower
  • Carton size adjustment: Manual
  • Taping heads: Upper and lower
  • Standard configuration: T22
  • Tape width: from 25 to 50 mm depending on the head (to be indicated when ordering)
  • Tape tension: Adjustable
  • Max. tape reel diameter: 360 mm
  • Internal reel diameter: 76 mm
  • Power supply: 380 V three-phase – 50/60 Hertz
  • Installed power: 0.25 kW
  • Electrical protection: IP 54
  • Working temperature: + 5° C – max. +35° C
  • Belt speed: 22 m/min
  • Production: 1000 cartons/h
  • Working surface height: 650 mm
  • Weight: 147 Kg
  • Machine dimensions (L x W x H): 1170 x 860 x 1450 mm
